EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 4.10 RATIO

4500 VAN PREFERRED EQUIPMENT GROUP

PAINT, SOLID

SUMMIT WHITE

MEDIUM PEWTER, CUSTOM CLOTH SEAT TRIM

POWER CONVENIENCE PACKAGE

DRIVER CONVENIENCE PACKAGE

CHROME APPEARANCE PACKAGE

DIFFERENTIAL, HEAVY-DUTY LOCKING REAR

BATTERY, HEAVY-DUTY 770 COLD-CRANKING AMPS

FUEL TANK CAPACITY, APPROXIMATELY 57 GALLONS (215.7L).

BUMPER, FRONT CHROME WITH STEP-PAD

GRILLE, CHROME

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

LPO, BLUETOOTH PHONE CONNECTION KIT

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

CONSOLE, ENGINE COVER

CRUISE CONTROL

THEFT ALARM NOTIFICATION

DOOR LOCKS, POWER

WINDOWS, POWER

REMOTE KEYLESS ENTRY

MIRROR, INSIDE REARVIEW

VISORS, DRIVER AND FRONT PASSENGER, VINYL

AIRBAGS, SEAT-MOUNTED SIDE-IMPACT FOR DRIVER AND RIGHT-FRONT PASSENGER AND ROOF-RAIL MOUNTED HEAD-CURTAIN SIDE-IMPACT

REAR VISION CAMERA

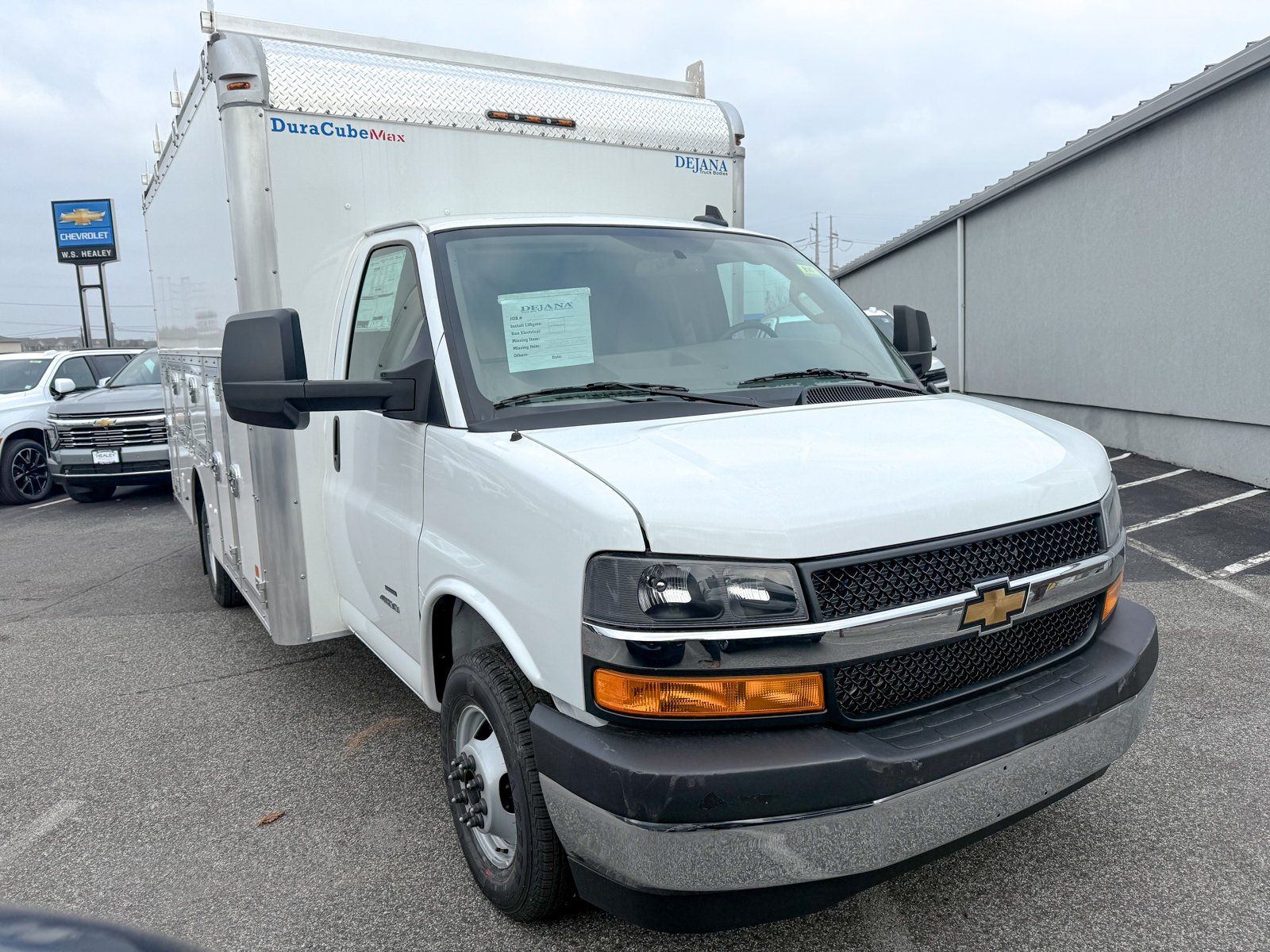

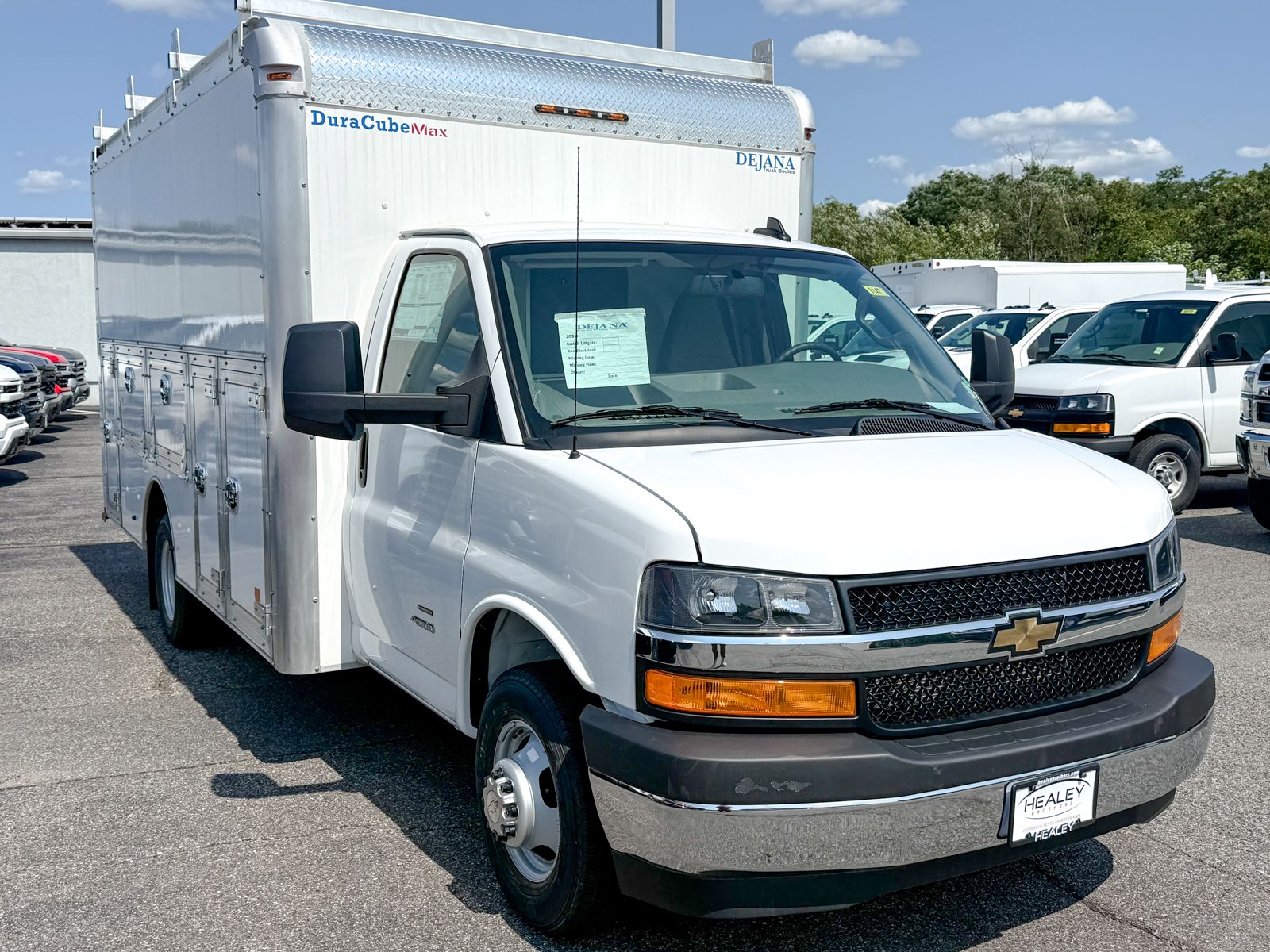

Vehicle Name - Chevrolet Express Commercial Cutaway

Body Style - 159.0" WB

Body Code - ZW9

Drivetrain - Rear Wheel Drive

Passenger Capacity - 2

Gross Axle Wt Rating - Front (lbs) - 4600

Gross Axle Wt Rating - Rear (lbs) - 9600

Curb Weight - Front (lbs) - 3206

Curb Weight - Rear (lbs) - 1762

Gross Vehicle Weight Rating Cap (lbs) - 14200

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Tons/yr of CO2 Emissions @ 15K mi/year -

Gross Combined Wt Rating (lbs) - 20000

Dead Weight Hitch - Max Trailer Wt. (lbs) -

Dead Weight Hitch - Max Tongue Wt. (lbs) -

Wt Distributing Hitch - Max Trailer Wt. (lbs) -

Wt Distributing Hitch - Max Tongue Wt. (lbs) -

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Engine Order Code - L8T

Engine Type - Gas V8

Displacement - 6.6L/- TBD -

Fuel System - Electronic Fuel Injection

SAE Net Horsepower @ RPM - 401 @ 5200

SAE Net Torque @ RPM - 464 @ 4000

Trans Order Code - N8X

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Seventh Gear Ratio (:1) - - TBD -

Eighth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model -

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 770

Cold Cranking Amps @ 0? F (2nd) - - TBD -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Ladder-Type

Suspension Type - Front - Indep Coil Spring

Suspension Type - Rear - Multi-Leaf

Spring Capacity - Front (lbs) - 4600

Spring Capacity - Rear (lbs) - 9600

Axle Type - Front - Independent

Axle Type - Rear - Full-Floating

Axle Capacity - Front (lbs) - 4600

Axle Capacity - Rear (lbs) - 9600

Axle Ratio (:1) - Front -

Axle Ratio (:1) - Rear - 4.10

Shock Absorber Diameter - Front (mm) - 35.0

Shock Absorber Diameter - Rear (mm) - 35.0

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - XHF

Rear Tire Order Code - YHF

Spare Tire Order Code - ZHF

Front Tire Size - LT225/75R16E

Rear Tire Size - LT225/75R16E

Spare Tire Size - LT225/75R16E

Front Tire Capacity (lbs) - 2335

Rear Tire Capacity (lbs) - 2470

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 16 x 6.5

Rear Wheel Size (in) - 16 x 6.5

Spare Wheel Size (in) - 16 x 6.5

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), On Center - 17.2

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 54.5

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.8 x 1.5

Rear Brake Rotor Diam x Thickness (in) - 13.58 x 1.6

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 57

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - Mid-frame

Aux Fuel Tank Location -

Front Head Room (in) - 40.85

Front Leg Room (in) - 41.35

Front Shoulder Room (in) - 68.85

Front Hip Room (in) - 65.48

Wheelbase (in) - 159

Length, Overall (in) - 267.15

Width, Max w/o mirrors (in) - 94.53

Height, Overall (in) - 83.78

Overhang, Front (in) - 39.70

Overhang, Rear w/o bumper (in) -

Front Bumper to Back of Cab (in) - 98.70

Cab to Axle (in) - 100.00

Cab to End of Frame (in) - 168.45

Ground to Top of Load Floor (in) -

Ground to Top of Frame (in) - 30.08

Frame Width, Rear (in) - 42.00

Ground Clearance, Front (in) - 9.30

Ground Clearance, Rear (in) - 8.35

Model Group - Express Cutaway

Vehicle Segment - Chassis

Vehicle Type - Chassis

Body Cab Style - Chassis

Engine Displacement Units - 6.6

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Chevrolet Truck, Incomplete Vehicle
